Construction Photos of Home Built with Insulated Concrete Forms

Following are photos of a home built with insulated concrete forms. As you'll see, the site prep and foundation are the same as for any type of construction.



insulated concrete forms, ICF, insulating concrete forms

Above: The site has been cleared and prepped.

insulated concrete forms, ICF, insulating concrete forms

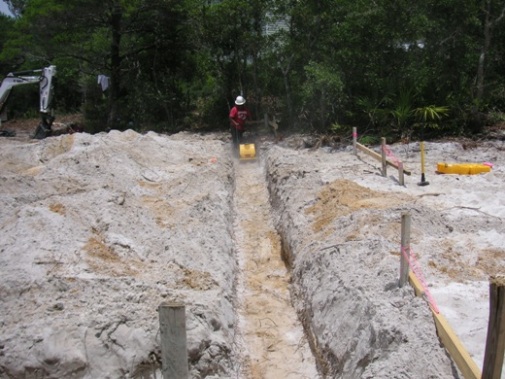

Above: The preparation for the footings has begun. This process is the same as for most homes.

insulated concrete forms, ICF, insulating concrete forms

insulated concrete forms, ICF, insulating concrete forms

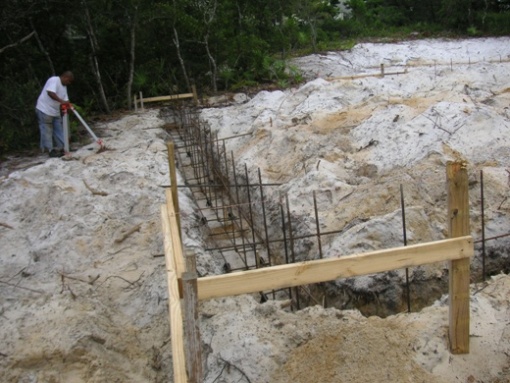

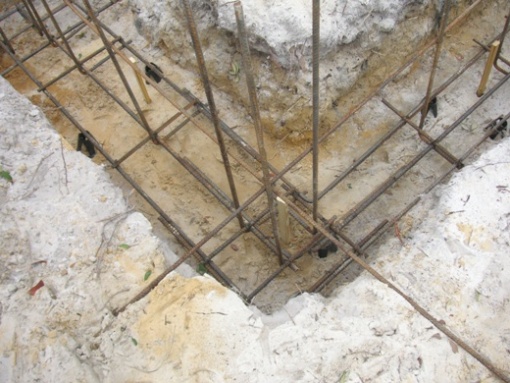

Above: The footings are now prepared with rebar for the concrete pour.

insulated concrete forms, ICF, insulating concrete forms

Above: The footings after the concrete pour.

insulated concrete forms, ICF, insulating concrete forms

Above: The stem walls are in place.

insulated concrete forms, ICF, insulating concrete forms

Above: The plumbing has been roughed in.

insulated concrete forms, ICF, insulating concrete forms

Above: A close-up shot of the slab, which is now ready for the concrete pour.

insulated concrete forms, ICF, insulating concrete forms

Above: Pumping in concrete for the floor.

insulated concrete forms, ICF, insulating concrete forms

Above: Finishing the floor after the pour.

insulated concrete forms, ICF, insulating concrete forms

Above: Watering the floor to prevent cracking from premature drying of the concrete.

insulated concrete forms, ICF, insulating concrete forms

Above: The first row of insulated concrete forms have been installed.

insulated concrete forms, ICF, insulating concrete forms

Above: Detail of rebar placement within the ICF form before the concrete is poured within the forms.

insulated concrete forms, ICF, insulating concrete forms

Above: Window and door bucks are made before installation.

insulated concrete forms, ICF, insulating concrete forms

Above: The first window buck is in place.

insulated concrete forms, ICF, insulating concrete forms

Above: Braces in foreground to be used as ICF blocks are stacked.

insulated concrete forms, ICF, insulating concrete forms

Above: ICF walls continue to be built.

insulated concrete forms, ICF, insulating concrete forms

Above: Window and door bucks are secured to the ICF block with heavy bolts.

insulated concrete forms, ICF, insulating concrete forms

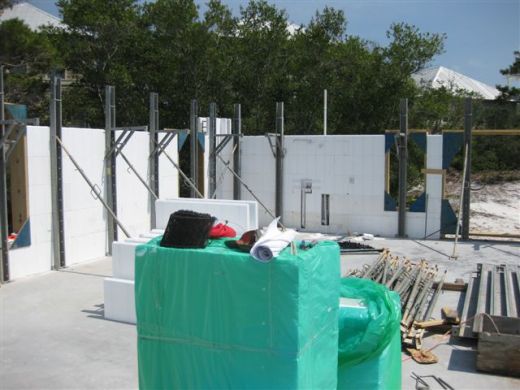

Above: Bracing in place as the ICF walls are built.

insulated concrete forms, ICF, insulating concrete forms

Above: ICF walls are now built, and scaffolding is in place for filling the completed walls with concrete.

insulated concrete forms, ICF, insulating concrete forms

Above: Walls being filled with concrete from the pumper truck.

insulated concrete forms, ICF, insulating concrete forms

insulated concrete forms, ICF, insulating concrete forms

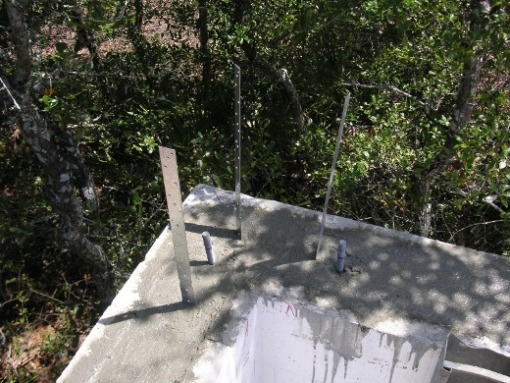

Above: Roof truss tie-downs inserted into fresh concrete walls prior to drying.

insulated concrete forms, ICF, insulating concrete forms

Above: Washer hookup inserted within ICF block (this is done after the concrete has been poured within ICF blocks).

Below: Framing begins...

insulated concrete forms, ICF, insulating concrete forms

insulated concrete forms, ICF, insulating concrete forms

insulated concrete forms, ICF, insulating concrete forms

insulated concrete forms, ICF, insulating concrete forms

insulated concrete forms, ICF, insulating concrete forms

insulated concrete forms, ICF, insulating concrete forms

insulated concrete forms, ICF, insulating concrete forms

Above: Roof decking has been installed.

Below: Porch roof detail (2 photos).

insulated concrete forms, ICF, insulating concrete forms

insulated concrete forms, ICF, insulating concrete forms

insulated concrete forms, ICF, insulating concrete forms

insulated concrete forms, ICF, insulating concrete forms

Above: The metal roof is in place. The exterior finishing then commenced with a stucco application. Following is a photo of the completed home.

insulated concrete forms, ICF, insulating concrete forms

insulated concrete forms, ICF, insulating concrete forms

Additional photos of the finished exterior and interior can be viewed here. Insulated concrete forms (ICF), though they may look odd during construction, provide an excellent thermal barrier for energy efficiency. Added benefits include termite resistance, fire resistance, and sound proofing.

And for those who live in areas where extreme weather--such as hurricanes and tornadoes--occurs frequently, having a home built with ICF provides peace of mind.

Having a home constructed with solid concrete walls also provides lower home insurance premiums due to the fire resistance and extreme weather resistance.

ICF homes can be finished with any exterior or interior finishing materials as a wood framed home. So you have complete flexibility with regard to finishing materials.
